หุ่นยนต์เดินตามเส้น หลบหลีกสิ่งกีดขวาง micro:bit Educational Programming Robot Platform จาก DFRobot

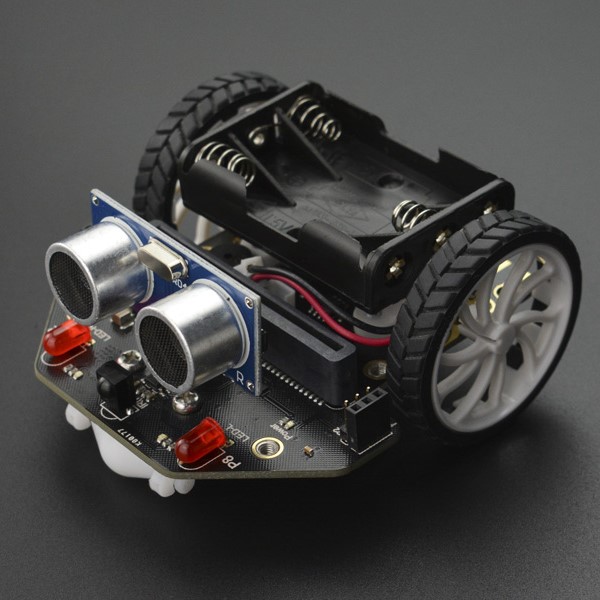

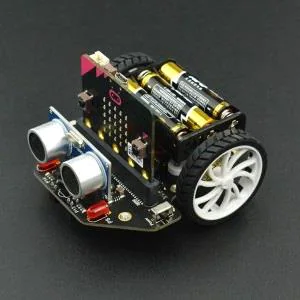

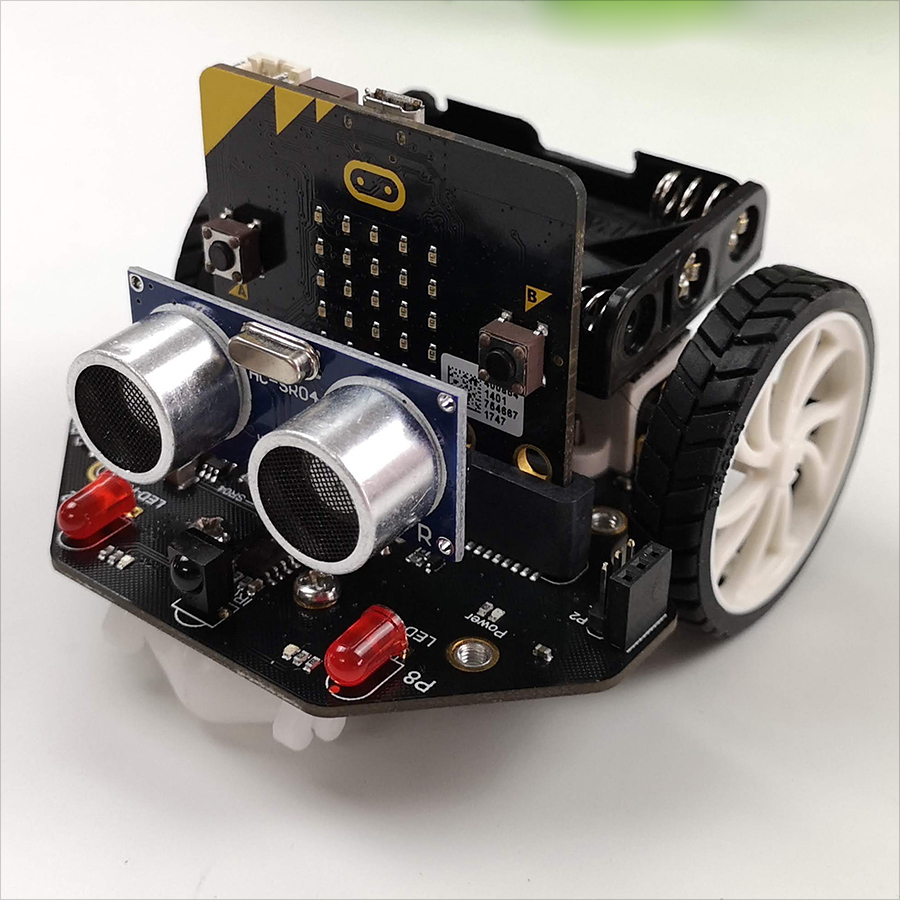

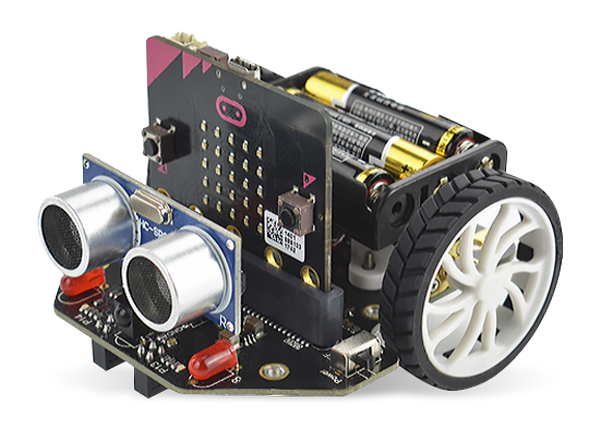

Hello, my name is Maqueen, is a graphical programming robot for STEM education, which inherits playability and simple operation of micro:bit. The Mini-body, interesting features and plug-and-play allow children to quickly learn graphic programming in entertaining, nurturing children's interest in science and logical thinking.

Suggest Age: 8 +

What are the features of Maqueen?

- Support for Makecode, will support Scratch and python later.
- Small size, flexible movement.
- All-metal miniature gear motor, good quality, strong driving force.
- Line patrol, ambient light, LED lights, ultrasonic interface, buzzer, I2C interface, mechanical expansion screw hole, etc. ... full-featured, highly expandable.
- Exclusive customized POM bearing wheel, flexible and reliable, strong obstacle crossing ability.
- Easy to install, easy to use.

Maqueen is accessible to Mind+ Programming platform now. Mind+ is a Scratch3.0-based graphical programming platform from DFRobot, supporting python, Arduino and other programming platforms. At present, Mind+ has been applied to all kinds of sensors, modules and related educational products.

Amazing! DIY Robot kit Maqueen V2.0 - BBC Micro:Bit



SPECIFICATION





• Power Supply：3.5V-5V DC (3 AAA batteries or 3.7V lithium battery)

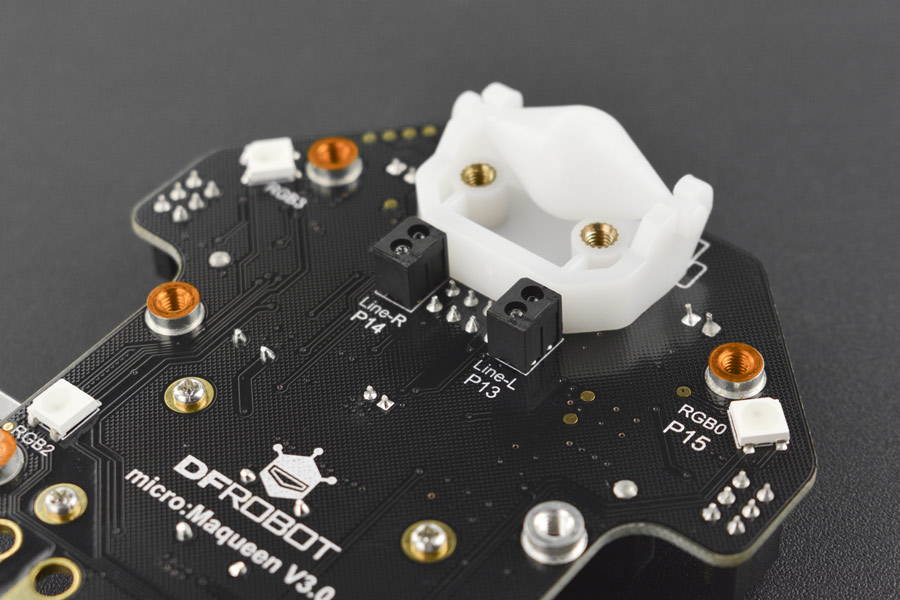

• Infrared Line-tracker (Digital input) ×2
• Buzzer×1
• IR Receiver (NEC encode) ×1
• On-board LED Light (Digital output) ×2
• On-board RGB programmable Light ×4
• SR04, SR04P Ultrasonic 4-pin connector (5V) ×1
• IIC Interface (3.3V)×1

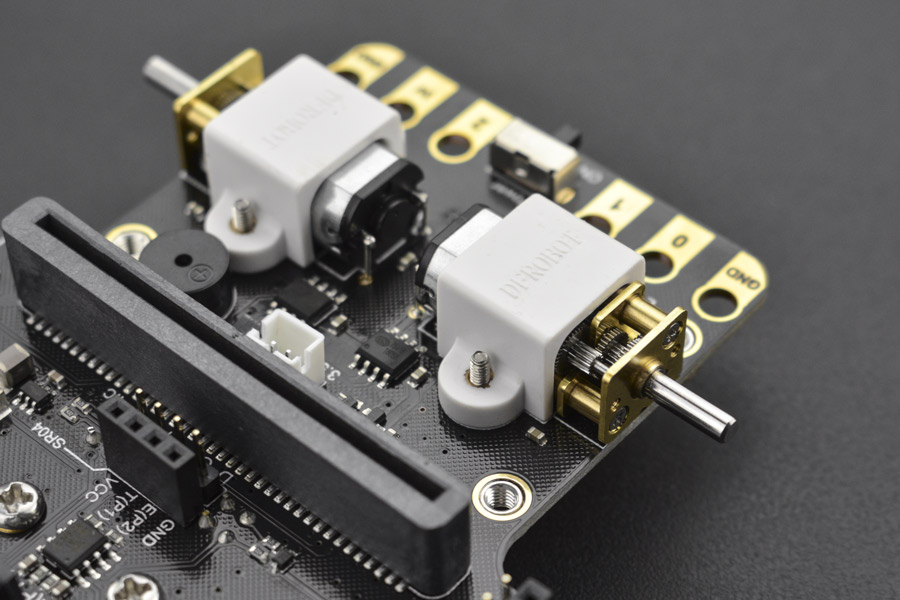

• N20 Metal Gear Motor ×2
• Motor Reduction Ratio: 1:150
• Maximum Rotation Ratio: 133 rpm
• Motor Drive Mode: PWM Motor Drive
• Bracket and Protective Cover Extension M3 Screw Hole ×6
• Programming Tool：MakeCode online editor
•                   Mind+(Based on Scratch 3.0)
• Dimension: Width 81mm× long 85mm× height 44mm
• Weight: 75.55g (batteries, micro:bit board excluded)





DOCUMENTS





• Product WIKI (User Guide)

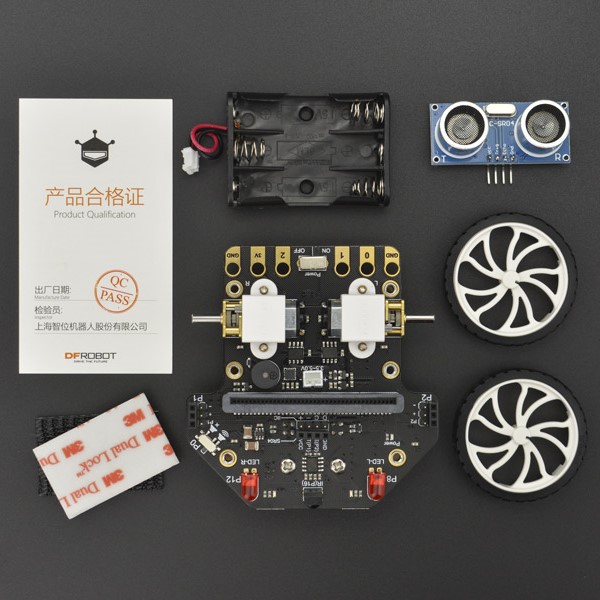

SHIPPING LIST





• Car Body (motor and supporting wheels are installed) *1
• HC-SR04 ultrasonic ranging sensor *1
• Wheel *2
• 3 AAA Batteries Box *1
• Double-side Adhesive Tape *1
