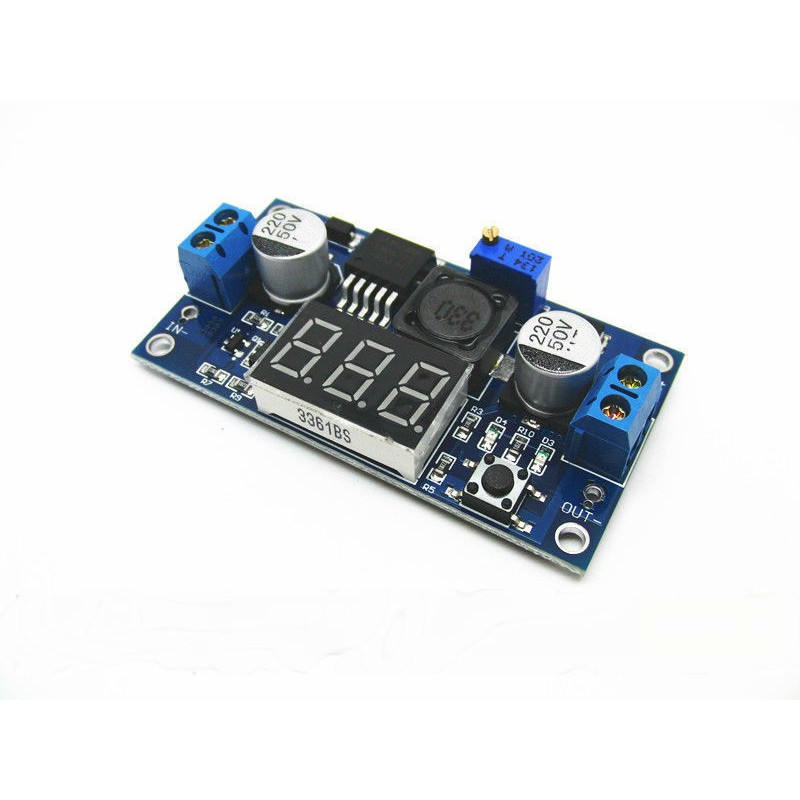

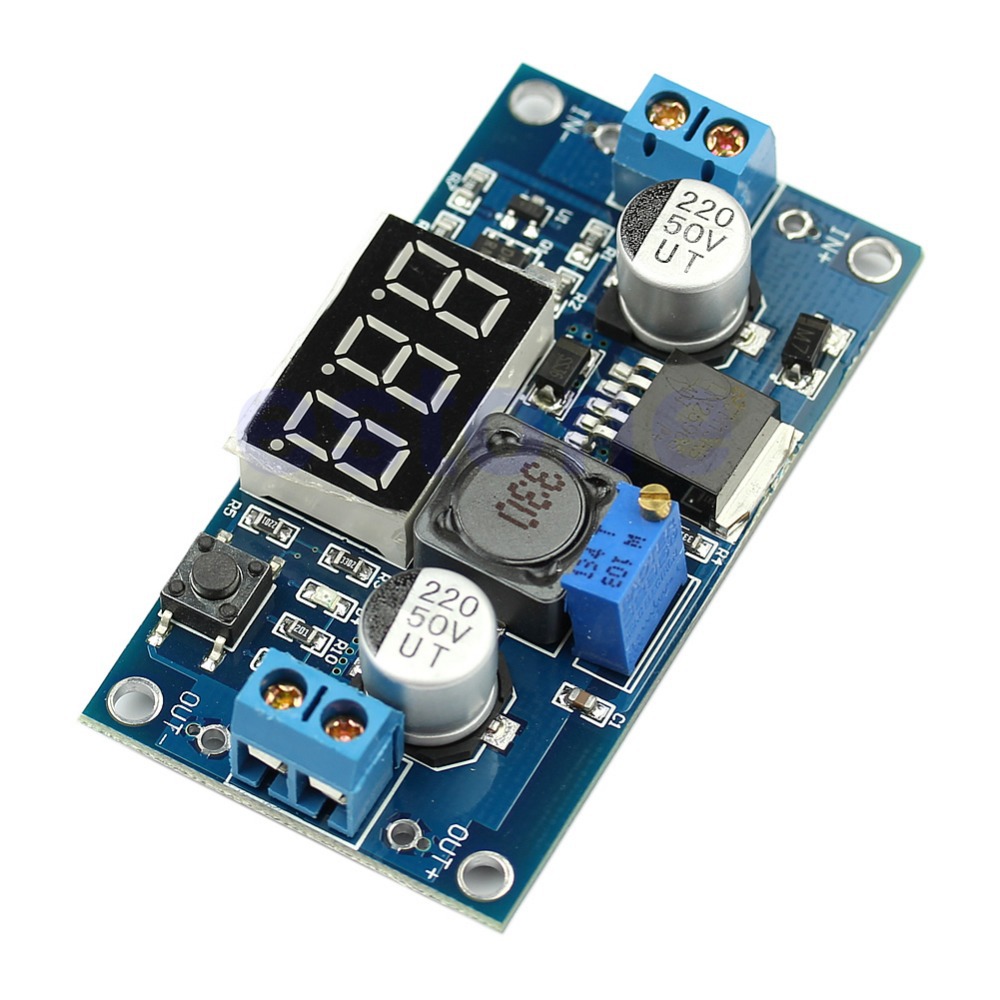

LM2596 Converter Buck Step Down Regulator Power Module 4-40 to 1.25-30V 3A

LM2596 Converter Buck Step Down Regulator Power Module 4-40 to 1.25-30V 3A

โมดูลแปลงแรงดันลง 4-40v เป็น 1.25-30v ให้กระแสสูงสุด 3a มีจอ แสดงผล แรงดัน input และ output

• Input voltage 4.0 ~ 40V ( input voltage must be higher than the output voltage of more than 1v. )

• Adjustable output voltage range 1.25V ~ 37V continuously adjustable (input voltage must be higher than the output voltage of 1V or more)
• Maximum output current up to 3A, the normal stable operating current in 2A

Low light touch button can switch to measure input or output voltage, and the indicator light shows which way is measuring voltage, and save the Settings, even the power is switched on again

Low voltage meter can be closed, when don't need to touch the left side of the button can easily implement With terminal blocks, no soldering iron can also ease of use, and keep welding line connection point

The input voltage 4.0 ~ 40 v (input voltage must be higher than the output voltage of 1.5 v above.) Low output voltage adjustable range 1.25 V ~ 37 V adjustable (input voltage must be higher than the output voltage of 1.5 V)
Maximum output current can be up to 3 a, normal and stable working current is 2 a
Using the internal oscillation frequency of 150 KHZ, belong to the second generation of switch voltage regulator, small power consumption, high efficiency.
Second-ranking has overheating protection and short circuit protection function
