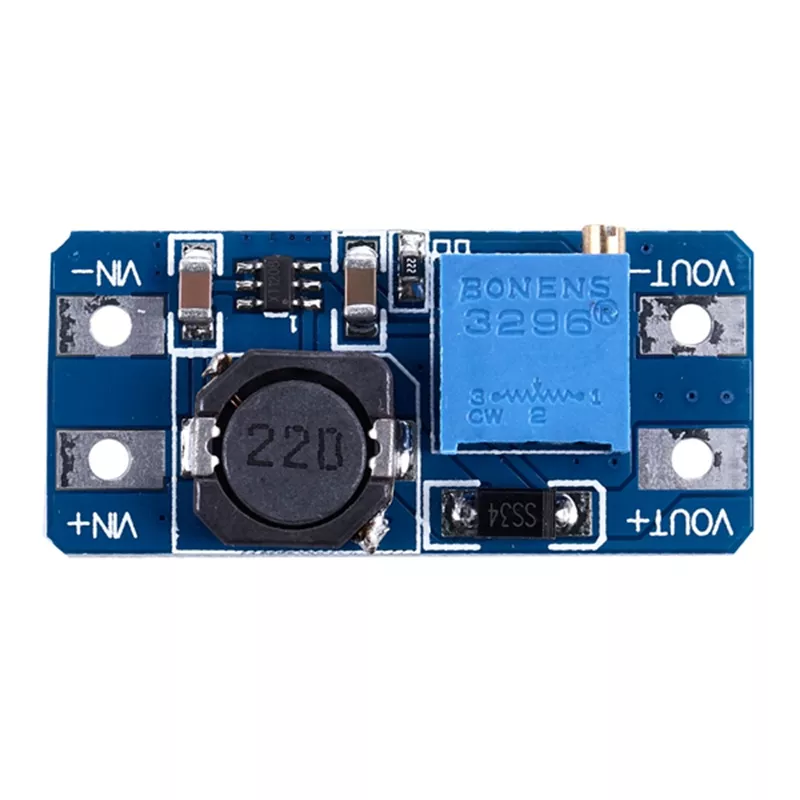

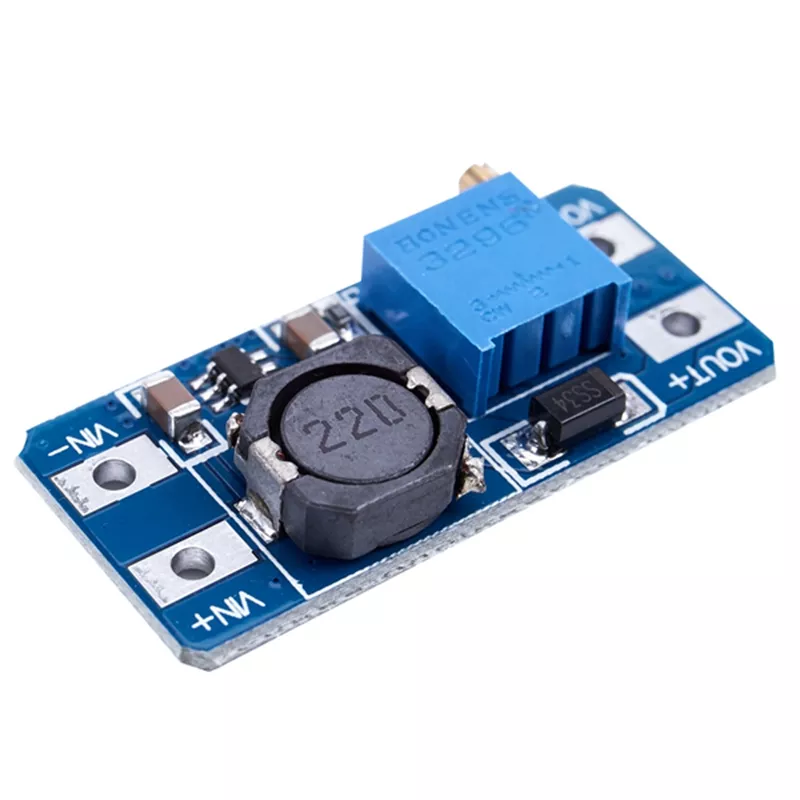

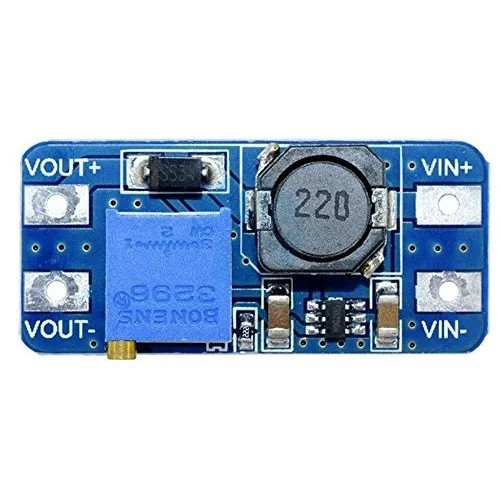

2A DC-DC Step Up Booster Power (MT3608)

โมดูลแปลงไฟขึ้น จาก 2-24V ปรับค่าได้สูงสุด 28V กระแส 2A

Electrical characteristics

• The maximum output current: 2 a
• The input voltage: 2 v ~ 24 v
• The maximum output voltage: 28 v
• Efficiency: ≤93%

Mechanical properties

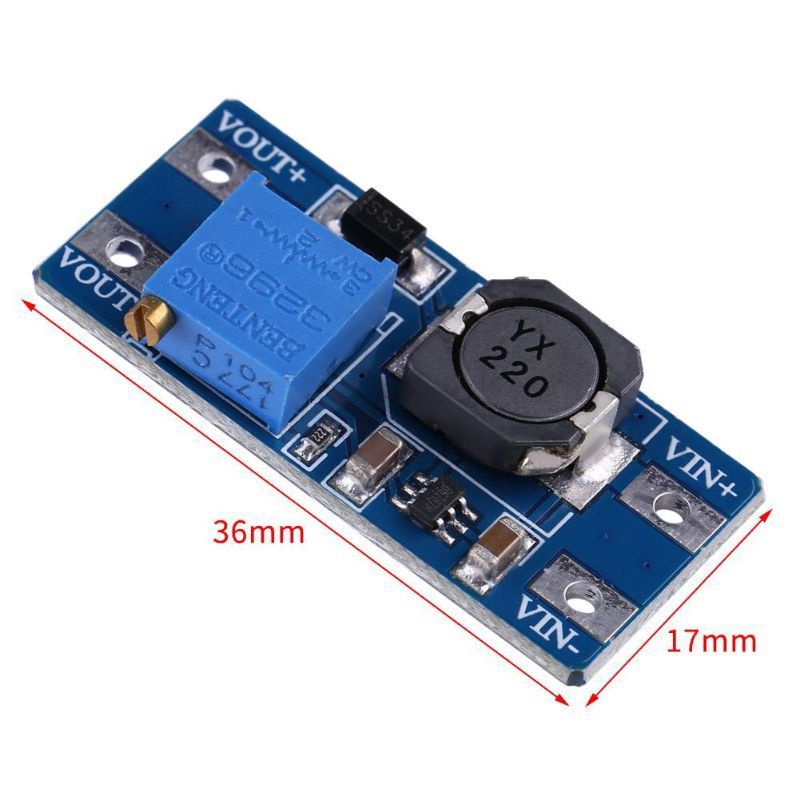

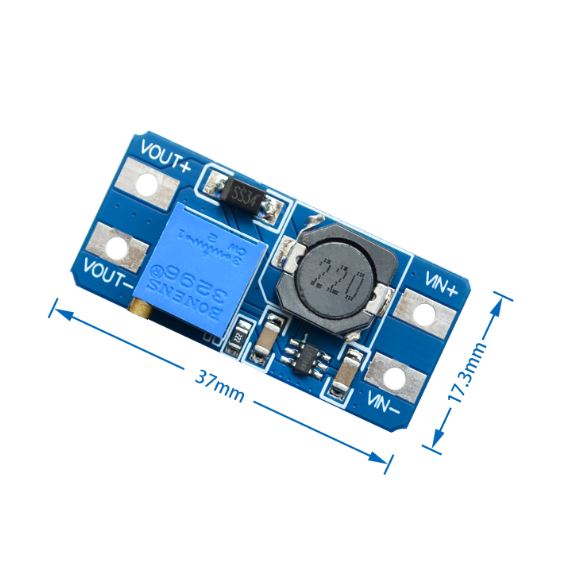

• product size: 36 mm * 17 mm * 14 mm

Method of use

• The module of the IN+ and - after 2~24v, IN adjusting the potentiometer can adjust output voltage, output voltage is greater than the input voltage

Matters needing attention

• The input voltage should not exceed the maximum input voltage
• The peak current output current is no more than TV university
