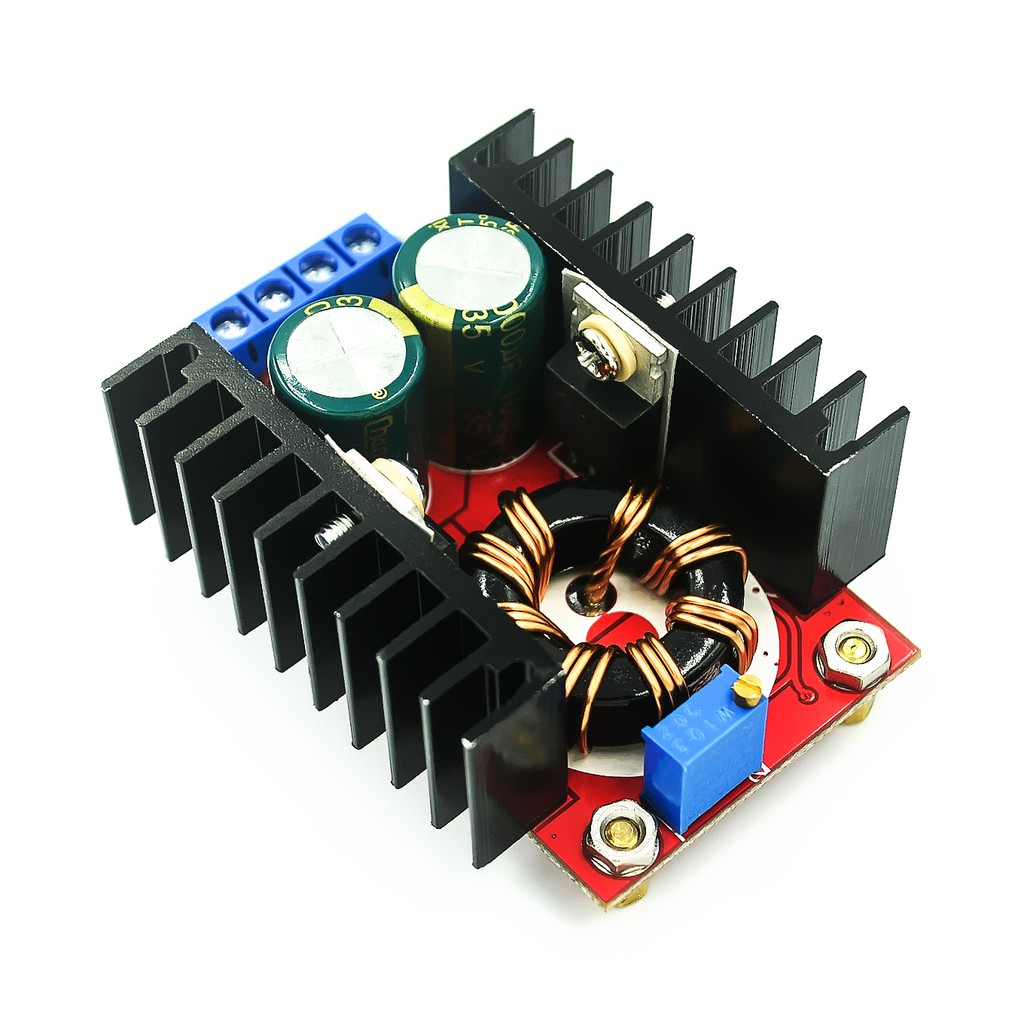

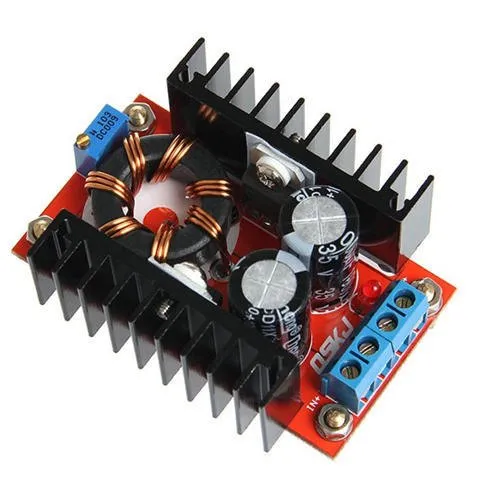

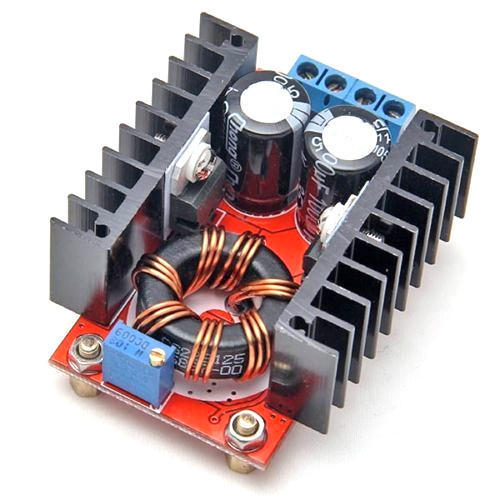

150W Boost Converter DC-DC 10-32V to 12-35V Step Up Module

150W Boost Converter DC-DC 10-32V to 12-35V Step Up Voltage Charger Module

Description:

โมดูลเรกูเลตแปลงไฟขึ้น 150W Boost Converter DC-DC รับแรงดันอินพุต 10-32V เอาต์พุต 12-35V

กระแสเอาต์พุตสูงสุด 6A จ่ายพลังงานสูงสุด 150W

Module Properties: non-isolated step-up module (BOOST)

• 65 * 56.5 * 23 (length * width * high) (mm)

• Input voltage :10-32V

• Output voltage: 12-35V (adjustable)

• Output Current: 6A (MAX)

• Input Current: 10A (MAX) (Please enhance heat dissipation if more than 10A)

• Output power: natural cooling 100W (MAX), enhance heat dissipation 150W (MAX)

Easy to drive 65W 90W dual-core notebook.

• Use a 12V battery drive 19V 3.42A notebook, the module temperature about 45°c

• Conversion efficiency: 94% (measured at Input 16V, output 19V 2.5A)

• Output Ripple: 2% (MAX) 20M-bandwidth

• Operating Temperature: Industrial (-40°c to +85°c) (ambient temperature exceeds 40°c,

lower power use, or to enhance heat dissipation)

• Full load temperature rise: 45°c

• No-load current: 25mA typical

• Voltage regulation: ± 0.5%

• Dynamic response speed: 5% 200uS

• Short circuit protection: None (Please Install fuses and protection circuits at Input port.)

Input Reverse Polarity Protection: None (Please Series diode at the input port.)Some

Applications:

1. DIY an output adjustable vehicle power supply, connect the 12V input, and output could be

14-35V(adjustable freely), However, the output voltage can not be less than the input voltage.

2. Car laptop power supply: connected to 12V power supply, output voltage regulation as your

notebook need.
