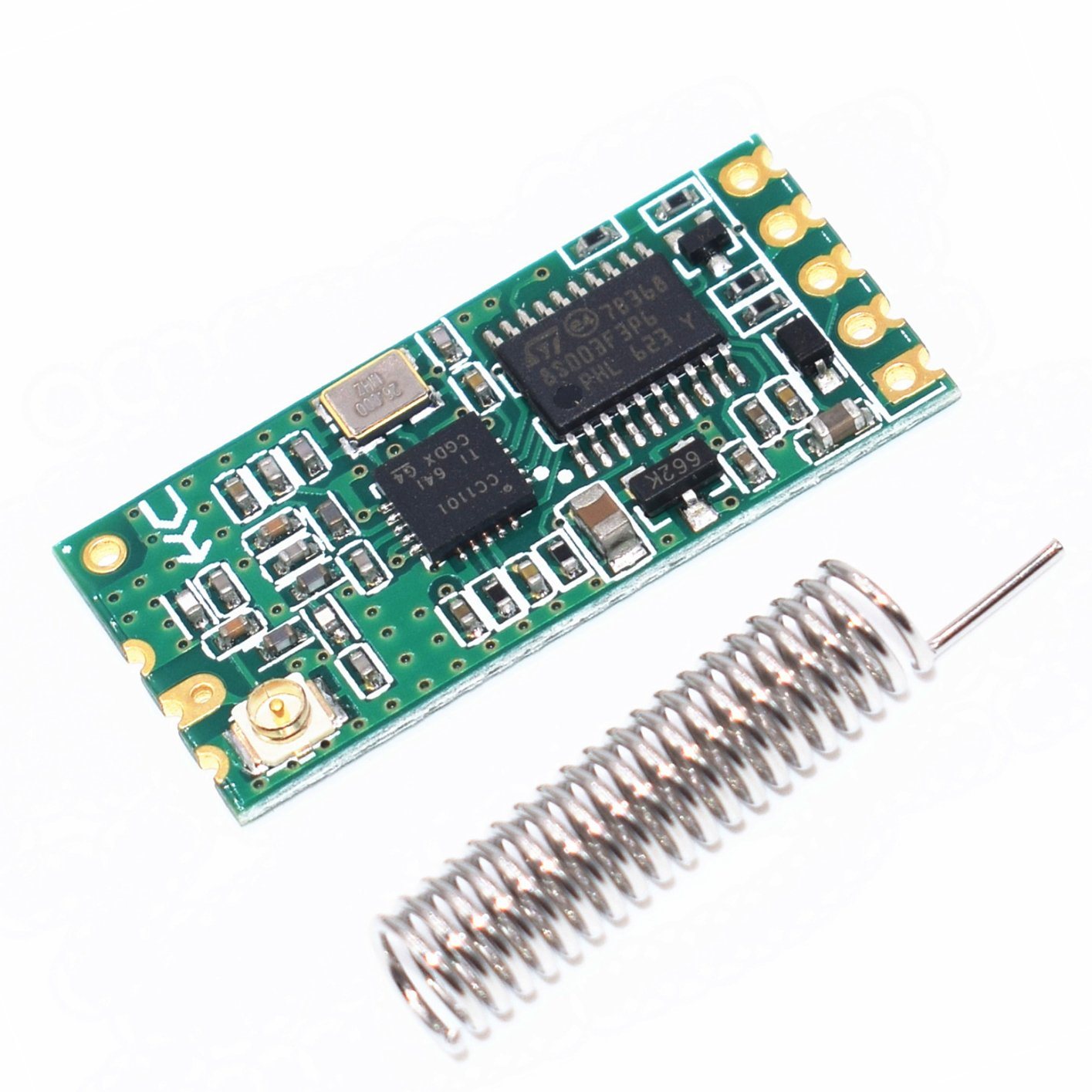

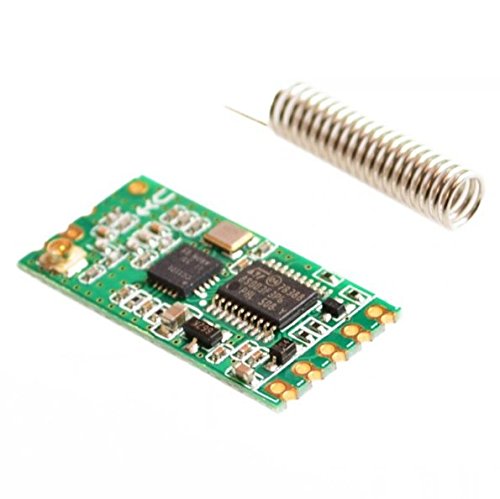

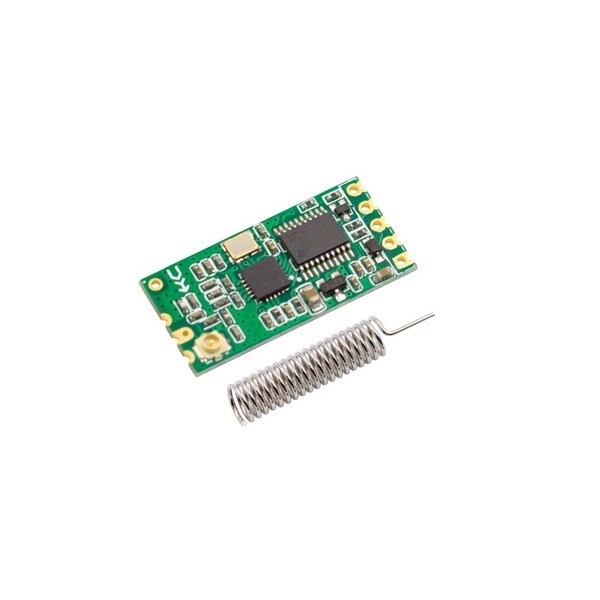

CC1101 Module 433MHz โมดูลส่องข้อมูลไร้สาย CC1101 Wireless to Serial HC-11

โมดูล RF ย่านความถี่ 433 Mhz สามารถตั้งค่าได้ทั้งโหมดรับ และโหมดส่งสัญญาณใช้พลังงานต่ำ ทำงานแบบ Serial Port Transparent

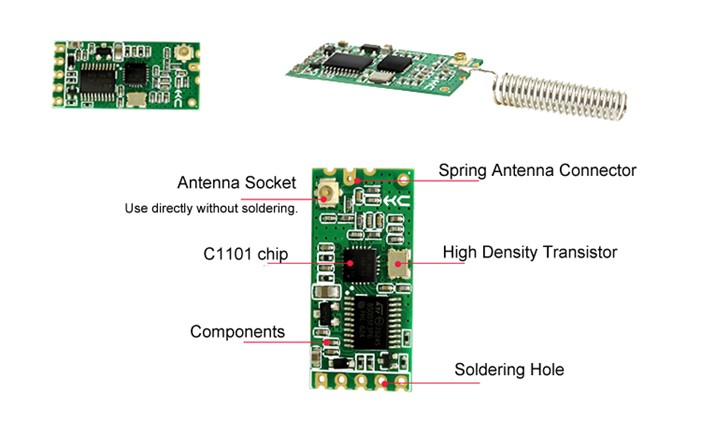

ข้อมูล CC1101 Module 433 Wireless to Serial

•     Working frequency: 433MHz
•     Operating supply voltage 3.3 V to 5.0 V
•     Serial input and output via UART
•     Serial Baud rate 1.2Kbps – 115.2Kbps (default 9600)
•     Communication distance: 1m to 40m indoor
•     Receiving sensitivity: -112dBm to -95dBm
•     Transmit power: -30dBm to 10dBm

• 1: FU1 mode:
• The default delivery mode.
• 2: FU2 mode:
• The IIDLE current is 80uA,but longer delay, transmission delay is close to 400ms.When use this mode,the serial port baud rate only can be 4800, 2400, 1200.Because of long time delay, when the continuous send serial data to the module, can only send 245 bytes of data by once.Low current consumption, suitable for the application of low power consumption.
• 3: FU3 mode:
• Transmission delay has been reduced to less than 8ms, the corresponding power consumption also increased slightly.
• 4: FU4 mode:
• Transmission distance is longer, the lower baud rate, the longer the transmission distance, the corresponding transmission delay is also a slight increase

• enter into AT instruct mode:
• 1. Connect to 3.3V,give low level to the pin 5(keep low),then enter into AT instruct mode. It will exit AT instruct mode when give high level to pin 5.
• 2. Power off, pin 5 connect to GND, then power on, after 1 second ,module will enter into AT instruct mode. It will exit AT instruct mode when give high level to pin 5.

1. AT

Send this instruction, return OK.

2. AT+V

Return version information

3. AT + Bxxxx

Baud rate is xxxx, it can be 2400, 4800, 9600, 19200, 38400, 57600, 115200

4. AT+Cxxx

Set communication channels, form 001 to 127

5. AT+FUx

Switch serial pass through mode, from 1~4

ข้อมูลเพิ่มเติม CC1101 Module 433 Wireless to Serial

• CC1101 Module 433 DataSheet
• https://tutorial.cytron.io/2014/05/15/wireless-uart-arduino-433mhz-434mhz-module/
