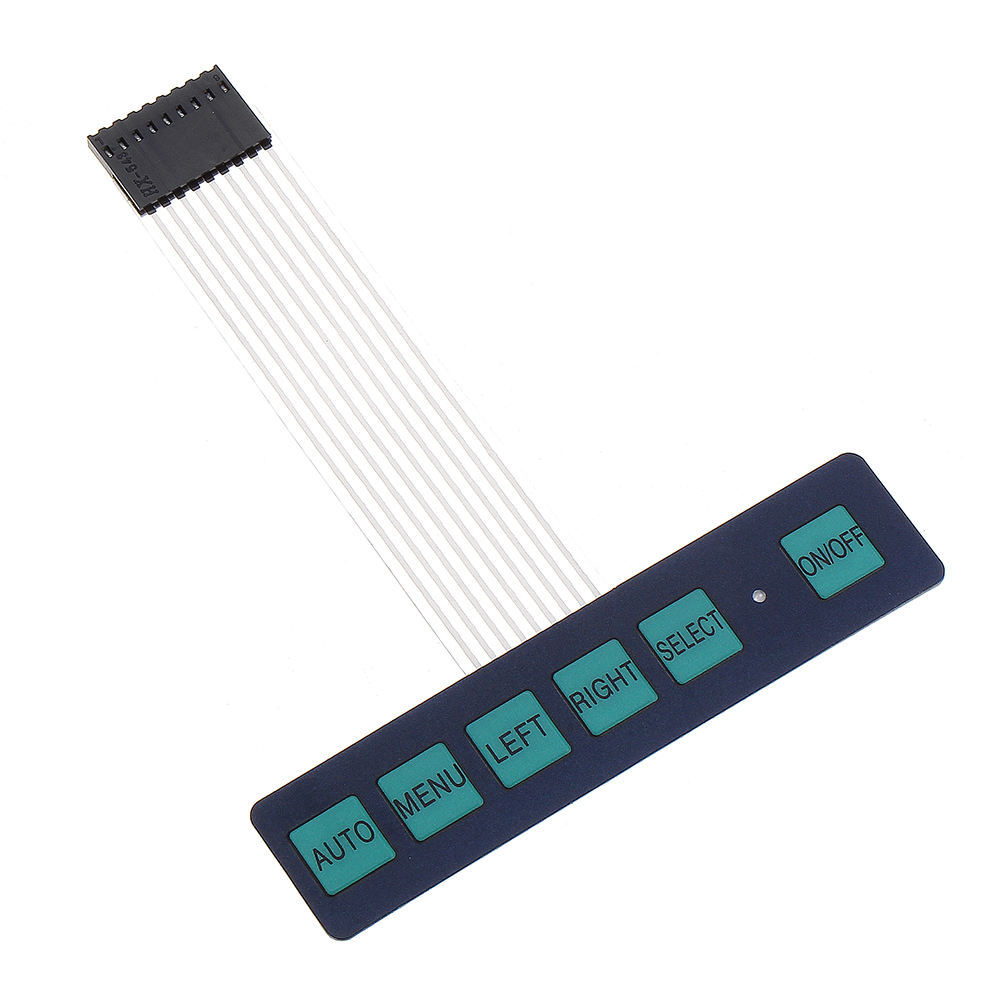

Keypad 6 Key พร้อม LED Membrane matrix Switch Keypad with LED

Keypad 6 Key พร้อม LED  Membrane Switch Keypad with LED

• Pad Size:                104 x 24 x 0.8mm
• Cable Length:        96mm (include connector)
• Weight:                   6g
• Connector:             Dupont 9 pins, 0.1" (2.54mm) Pitch
• Mount Style:           Self-Adherence
• Max. Circuit Rating: 35VDC, 100mA
• Insulation Spec.:   100M Ohm, 100V
• Dielectric Withstand:   250VRms (60Hz, 1min)
• Contact Bounce:   <=5ms
• Life Expectancy:   1 million closures
• Operation Temperature:      -20 to +40 °C

ตัวอย่างการใช้งาน Keypad 6 Key พร้อม LED  Membrane Switch Keypad with LED

• http://forum.hobbycomponents.com/viewtopic.php?f=6&t=1615
