Nokia 5110 LCD driver module 84x84

Nokia 5110 LCD driver module blue

http://fpga.googlecode.com/files/Nokia5110.zip

Introduction:

Nokia5110 LCD screen is used disassemble Nokia phones, the site sold off-color LCD are selected and quality are very good.

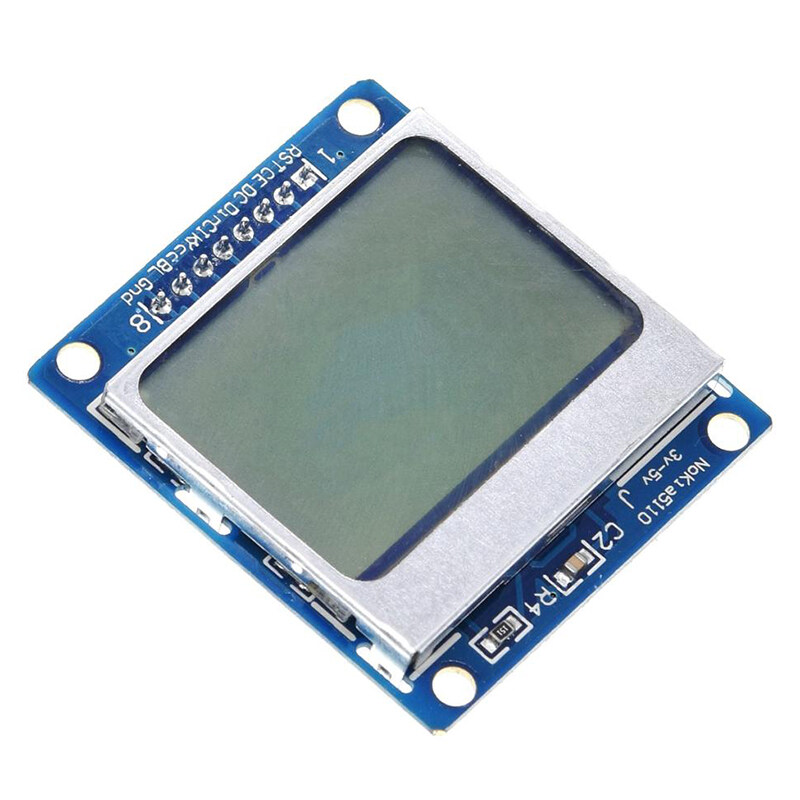

Bottom of the site design, corner positioning holes, while providing two rows of the upper and lower connection port, arranged as follows:

1.      RST - Reset

2.      CE - Chip Select

3.      DC - data / instruction selection

4.      DIN - serial data line

5.      CLK - Serial Clock Line

6.      VCC - power input (3.3v and 5v may, after experimental verification, no problem)

7.      BL - backlight control

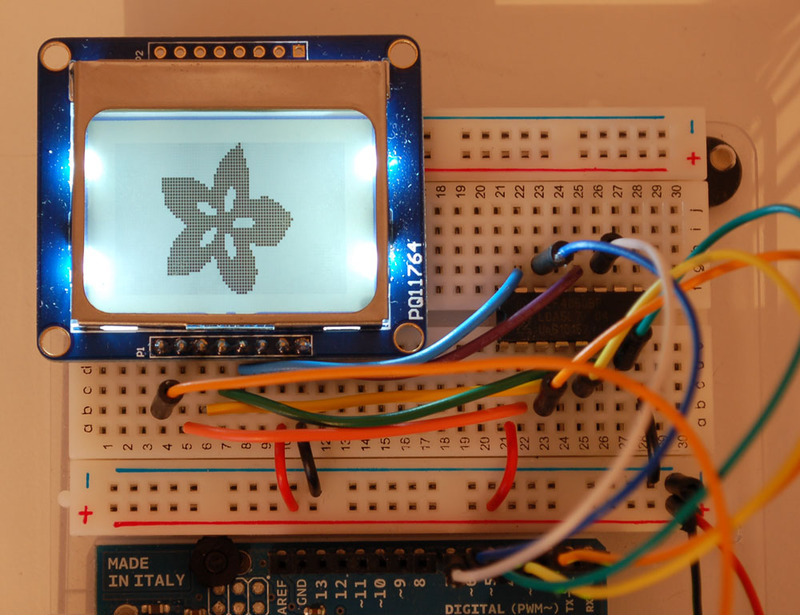

วิธีการต่ออุปกรณ์ สอนใช้งาน Arduino Nokia 5110 LCD driver module blue

1.เชื่อมต่ออุปกรณ์ตามด้านล่าง

Arduino UNO R3 -> Nokia 5110 LCD driver module blue
            • 3.3V -> VCC
            • 3.3V -> BL
            • GND -> GND
            • 3 -> RST
            • 4 -> CE
            • 5 -> DC
            • 6 -> DIN
            • 7 -> CLK
